Ground

Note from Akuli:

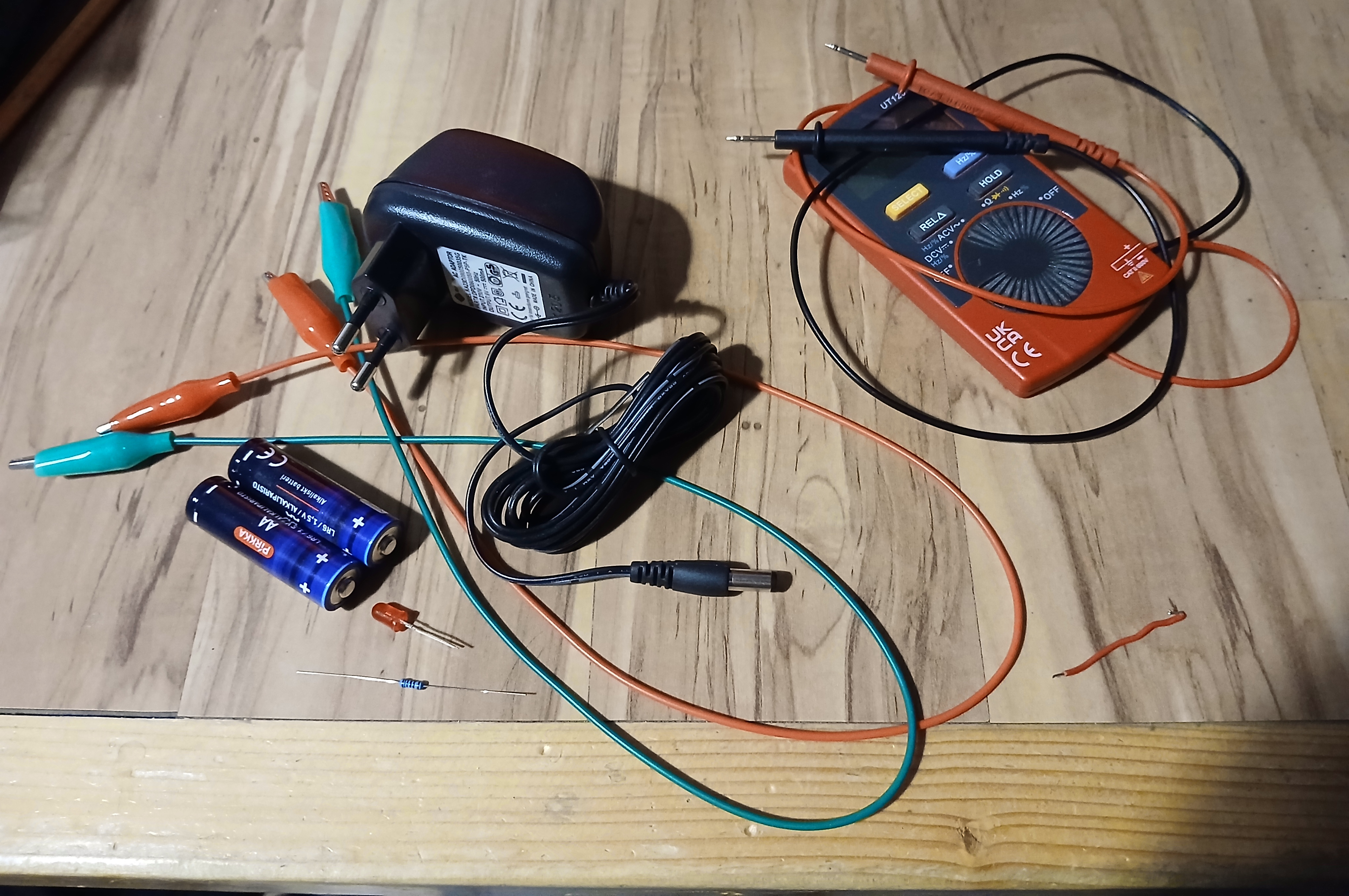

To follow along, you need:

Lesson Image

Lighting up an LED with batteries

adder Grabbed: breadboard, red LED, bunch of 1K resistors, gator clips, meter.
Akuli great! :)
Akuli the first thing we probably want to do is to get the LED to light up
adder OK.
Akuli tie a 1k resistor to one leg of the LED
Akuli like, just twist one resistor leg and one LED leg together
Akuli you can spread the LED legs to make more room
adder Tied.
Akuli then attach two alligator clip cables to the other two legs
Akuli alligator ---- led --- resistor --- alligator
adder You mean one gator with two ends?
Akuli two gators
Akuli each alligator cable will have one end still not connected anywhere
adder Attached.
Akuli now take the two batteries and place them so that the voltages add up to about 3V
Akuli then touch the alligator clips to the 3V you created
Akuli does the LED light up?
adder Both clips?
Akuli yeah
Akuli cable1 --> battery --> battery --> cable2 --> led --> resistor --> cable1
Akuli a loop
adder I'm only outputtin 2.47V.
adder Do I need a third battery?
Akuli third battery may help, but 2.47V should be enough to see something
adder Do I tie gator to battery bottom?
Akuli if you can
adder I can't. :)
Akuli you'll probably need to just hold it there
Akuli got the LED lighted up?
adder Yeah, but I needed to reverse the cables.
Akuli great! :)
Akuli so you already noticed that LEDs only work one way :)
Akuli so, walk me through the setup you have now that successfully lights the LED
Akuli like, just explain what's connected where
adder Like you've been saying, there is a red LED, to its longer leg is connected a 1K resistor, which is held by red gator, red gator touches the bottom of 2 chained batteries, and then green gator touches battery's bump and connects to shorter LED leg.
Note from Akuli:

The resistor was actually connected to the shorter LED leg (minus), not the longer leg (plus).

Color convention

Akuli a funny thing, but can you swap the red and green alligator cables around? :D
Akuli this is just a convention thing, red is plus
Akuli but clearer conventions lead to clearer thinking
Akuli it's like misleading variable names in programming
adder Sure.
adder Reversed.
Note from Akuli:

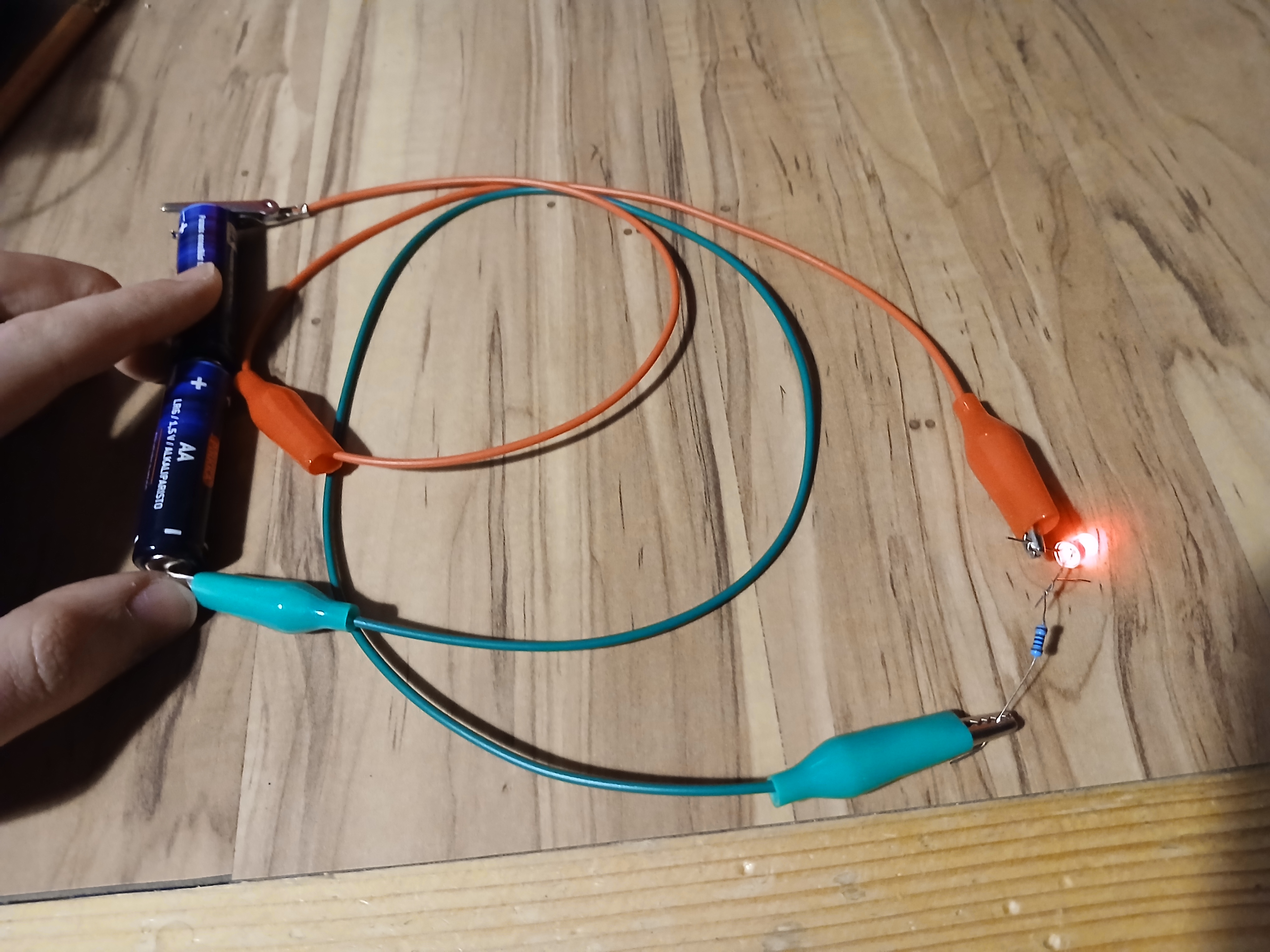

At this point, adder's setup looked something like this.

Lesson Image

LED polarity

Akuli led still working?
adder Longer leg is minus?
Akuli longer leg should be plus
Akuli but it's possible your LED's legs are cut misleadingly, sometimes they are
adder I got red gator attached to longer leg.
Akuli that sounds correct
adder And am connecting red gator to bump.
Akuli great :)
Akuli there's a tiny flat spot along one side of the LED
Akuli it's on the minus side
Akuli that's how you can always tell which way around the LED is
adder Flat spot?
Akuli yeah
adder Can't see no flat spot.

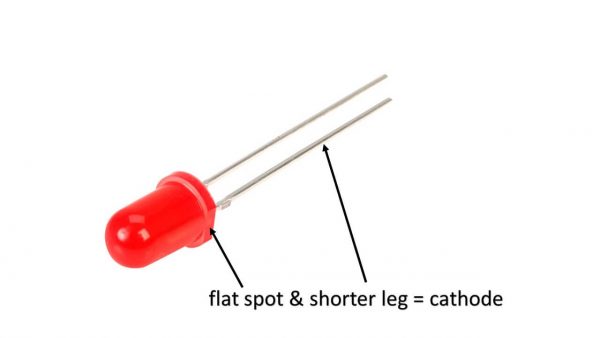

Lesson Image
Akuli sent a picture. The picture is from here.
Akuli (cathode is another name for the minus leg of the LED)
adder So my flat spot is where the resistor is.
Akuli and resistor eventually goes to battery minus (flat end)
Akuli so it all checks out, and should work
Akuli is it working?
adder Yeah.
Akuli great :)
Akuli so tl;dr for LED polarity:
Akuli minus leg is usually short, flat spot is always on minus side
Akuli ok?
adder OK.
adder So just one sec.
adder We want to connect short leg (minus, in general) to plus?
Akuli plus to plus, minus to minus
adder Ah, sorry. Missaw something.
Akuli yeah, easy to get confused :)

Connecting alligator clips to batteries

Akuli and adder try to connect cables to batteries for 24 minutes
Note from Akuli:

This conversation doesn't look like 24 minutes, but it happened slowly while we both tried to set up stuff in our apartments.

Here's some appropriate music:


The music is from here.
Akuli now measure all the voltages you can think of and let me know what you find out :)
Akuli if you have tape, that would be useful to hold together the batteries so you can measure voltages with two hands
adder I don't think I have the tape here. :(
adder And have only two hands.
Akuli we could switch to your power supply if you have that
adder I do.
Akuli i think last time we stuck something inside the plug to get the plus in the middle
Akuli the middle is plus, the outside is minus
adder Hm, I don't think I have anywhere to insert it (no free slots).
Akuli :D
adder Can I take two more gators and touch batteries with them/
Akuli sure, but it's hard to get an alligator to stick to battery minus
adder Well...
Akuli do you maybe have rubber bands? or a hair tie?
Akuli or a magnet?
Akuli or could you unplug something temporarily to use the power supply?
adder Got rubber bands.
Akuli great! :D
Akuli you can use them to strap on an alligator clip to the minus side of a battery
Akuli probably want to attach the plus side first
adder Red gator to plus?
Akuli yes
adder I don't need a band for that.
Akuli :)
adder Let's see how the other side goes.
Akuli that one likely needs a rubber band
adder IDK how to do it?
Akuli trying to rig it up here to see if i can do it
Akuli guess who doesn't have rubber bands :D
Akuli (fortunately, this is a sort of mess that you figure out once, and then you know what works and what doesn't work)
Akuli if you're on a laptop, maybe you could go to a different room that has a free outlet?

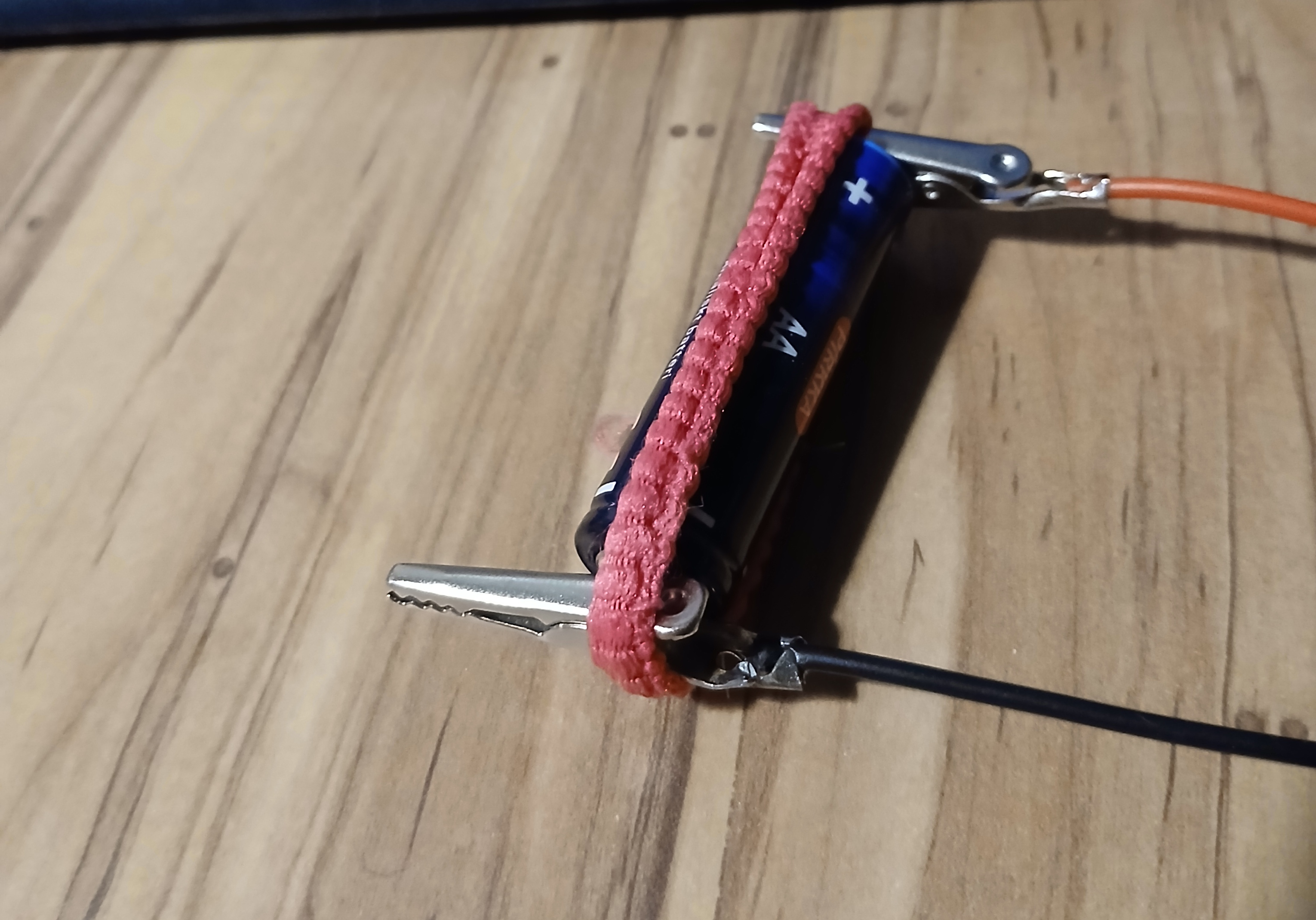

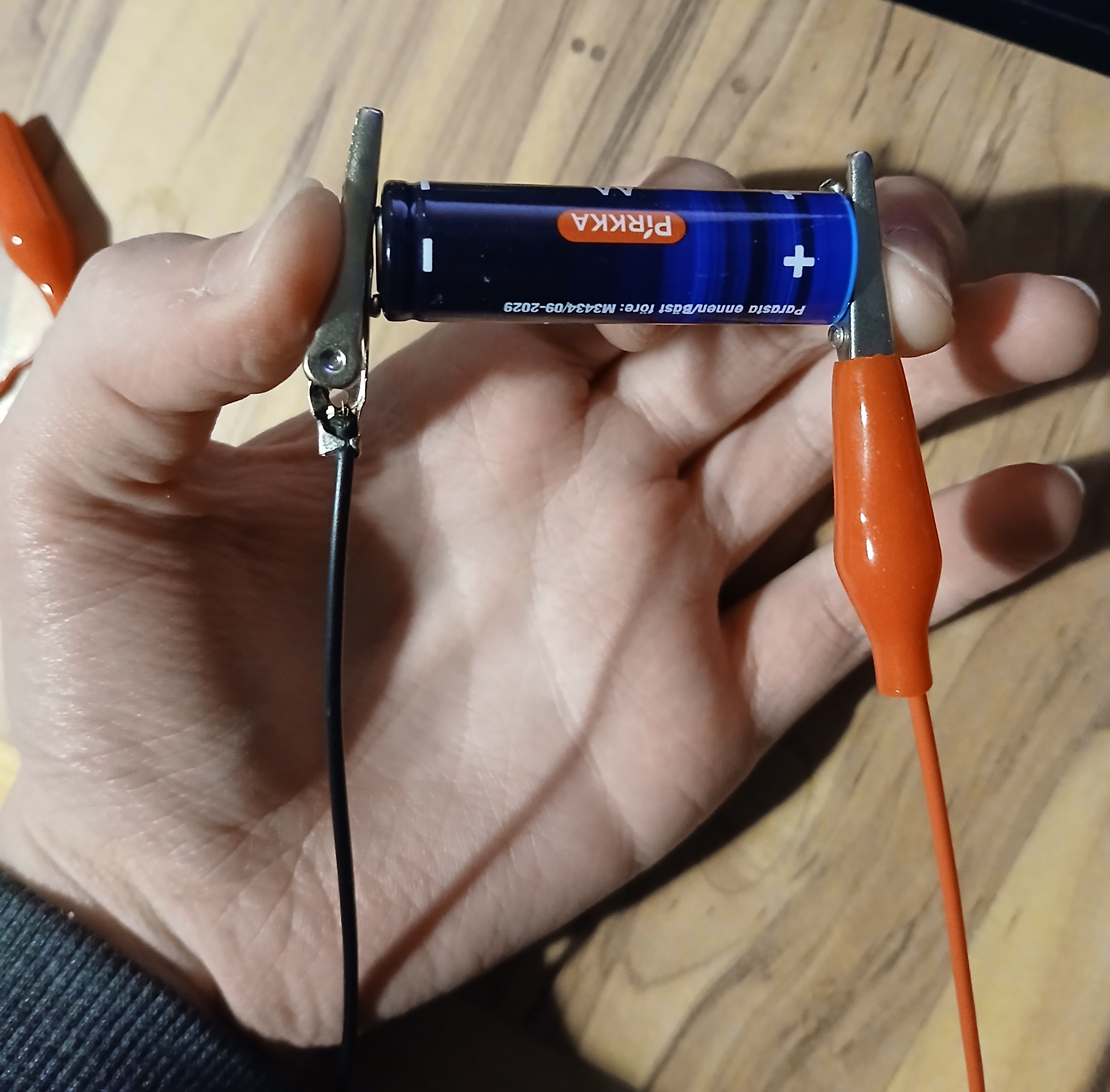

Lesson Image
Akuli sent a picture.
Akuli something like this, but with rubber band squeezing it instead of my hand
adder I'll go to another room and take the power supply with me.
Akuli great! :)
adder Just plug it in?
Akuli hmm
Akuli we might want to figure out the other end of it first
Akuli then plug in once everything is connected
Akuli there's no current limit on it, so it could make very tiny sparks, which are unlikely to be dangerous but might not be so nice to experience
Akuli ok?
Akuli (i will explain this in more detail later)
adder Are we about to cause a fire?
Akuli no
Akuli if you don't have a piece of paper nearby, no
adder I'm in bed.
Akuli :D
Akuli :DD
adder :)
Akuli i can't believe how difficult it is to get an LED to light up without touching anything :DDDDD
adder Breadboard?
Akuli this is a bit weird, but what do you think of hanging off the side of the bed so that you build the stuff on the floor while most of your body is on the bed?
Akuli this way, if you get a tiny spark for whatever reason, it's not on top of your bed sheets
adder Am really tired tbh to be hanging off bed. :D
Akuli :D
Akuli we could go back to rubber bands
Akuli i managed to set up what i had in mind using gf's hair tie
Lesson Image
Akuli sent a picture.
adder I think I'll do it on the night table.
Akuli night table sounds great!

Setting up the power supply

Akuli so, you have the small round thing coming from the power supply that isn't plugged in yet?
adder Plugged in where?
Akuli i want to confirm two things:
Akuli 1. power supply is not plugged in to wall yet
Akuli 2. you are looking at the other end of the power supply, the small round thing
adder 1. Correct
adder 2. Correct
Akuli great! :)
Akuli the round plug has the visible outside, and the hole in the tip
Akuli inside that hole is +
Akuli outside is -
Akuli ok?
adder OK.
Note from Akuli:

If you happen to use a power supply that was made for guitar pedals, the plus and minus are backwards: plus outside, minus inside. I don't know why that became the standard for guitar pedals.

Akuli do you have a piece of wire that fits inside the middle of the plug?
Akuli i think that's how we set it up last time
adder Yeah.
Akuli great! :)
Akuli stick it in, and put a red alligator clip cable onto that
Akuli stick your green alligator cable straight onto the outside
Akuli then connect to LED and resistor
adder OK.
Akuli once everything is hooked up, power it on and hope that the LED lights up :)
adder Should I set it to 3V?
Akuli whatever it's set to right now is fine
Akuli the 1kΩ is enough resistance for a lot of supply voltage
adder Burnz.
Akuli i.e. works great?
adder Yeah.
Akuli nice! :)
Note from Akuli:

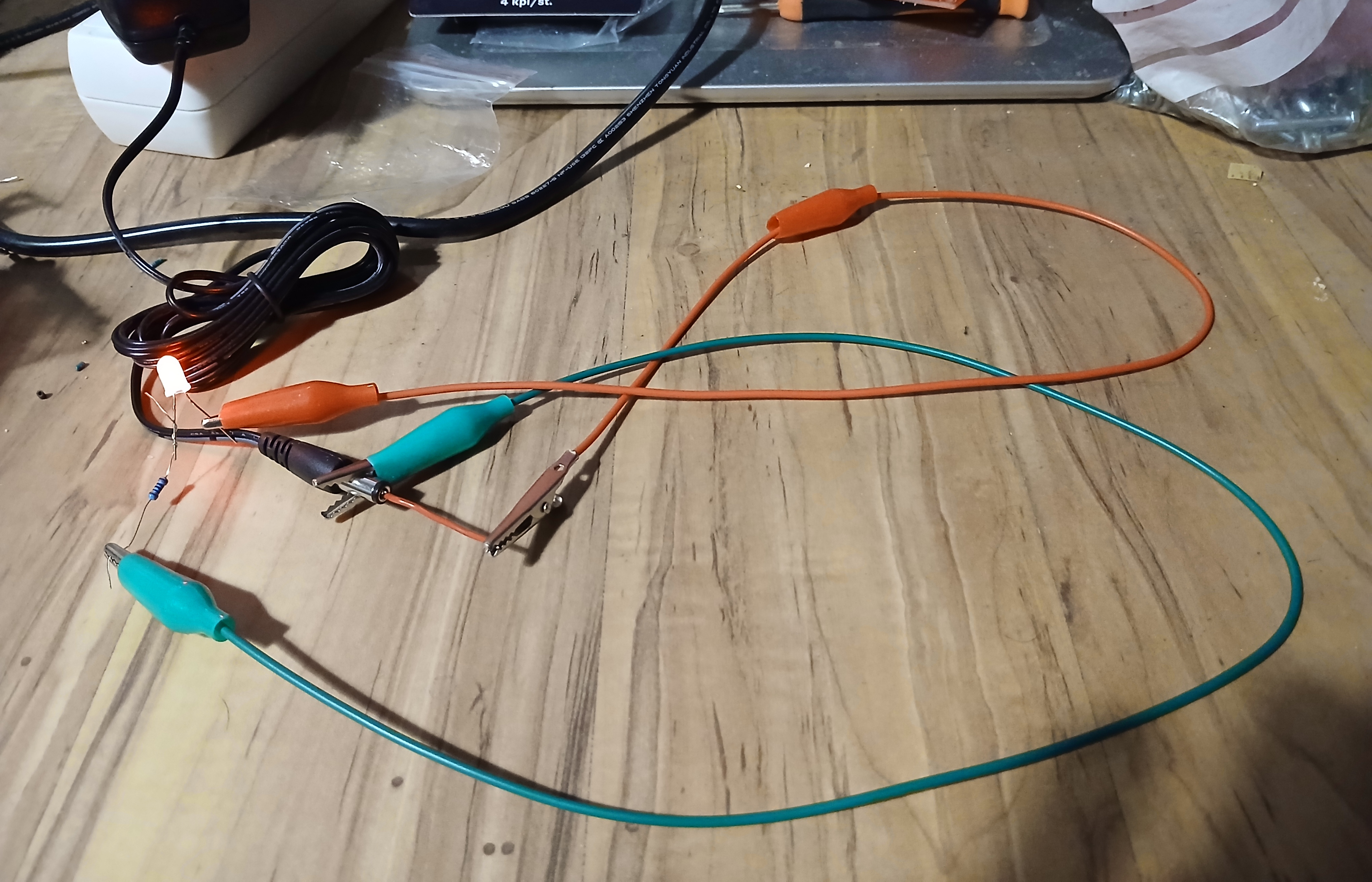

At this point, adder's setup looked something like this.

Lesson Image

Measuring voltages

Note from Akuli:

Make sure you know the important equation from the previous lesson.

Akuli let's measure some voltages :)
Akuli measure anything you can think of, and share results with me :)
adder Tried to measure the green gator ends.
Akuli like voltage from one end of gator to another?
Akuli that voltage is very low, if you're reading 0.01V that may actually be correct
adder Like 0.07V.
Akuli hm, surprisingly much but could be
Akuli how about across the LED? or the resistor? or both?
adder Got -7.7V touching one resistor leg and one LED leg.
Akuli like the outermost legs?
adder -1.852V should be across led.
Akuli that sounds right
adder One leg of resistor is all twisted up so I can't really measure it?
Akuli you can touch any part of the twisty mess
Akuli or squeeze the probe onto it with your fingers
adder 5.85 across resistor.
Akuli remember the important formula from yesterday? :)
Akuli does it apply here?
Akuli 5.85V + (-1.852V) = -7.7V
adder Yeah but the signs are weird.
Akuli my guess is that you accidentally swapped the leads at some point
adder If it's minus it should be less than 7?
Akuli yeah
Akuli if you keep the probes consistently oriented, it should be all positive, or all negative
Akuli and then the formula would work out
Akuli ok?
adder Got correct signs with consistent probing.
Akuli nice! :)
Measured voltage Value
Between the alligator clips 7.7V
Between LED legs 1.85V
Between resistor legs 5.85V

Why the resistor is needed

adder It's like there's a big voltage coming out of the green gator, which then splits up among LED and resistor.
Akuli yes, exactly!
Akuli this is one of the many situations when the question is, how does a voltage spread among multiple components
Akuli an LED that is turned on eats about 2V, depending on the LED and how bright it is and its color and a number of other details
Akuli the rest, in this case, goes to the resistor
Akuli ok?
adder OK.
Akuli without the resistor, the power supply would try to force all 7.7V on the LED
Akuli the LED would probably flash really brightly for a fraction of a second and then break, never to shine again
Akuli ok?
adder Right, I remember this.
Akuli :)

More convenience is needed

Akuli so, let's talk about ground
Akuli as you noticed, this way of measuring a circuit is kind of painful
Akuli there's 3 different things you could be measuring, and each of the 3 could accidentally be backwards
Akuli ok?
adder OK.
Akuli though you really only need to measure two things
Akuli the equation is V(A -> B) + V(B -> C) = V(A -> C)
Akuli so if you know any two of those, you can work out the third one
Akuli ok?
adder OK.
Akuli so ideally, we'd have a method that makes this whole thing easier
Akuli you want to be able to measure a voltage between any two points, but without the fuss
Akuli ok?
adder The other point being GND or 0V.
Akuli not necessarily
Akuli sometimes you do need a voltage across a component that doesn't connect to ground
adder OK, scrap that. :)
Akuli if we're going to throw a convenience system around this thing, we must not lose any functionality
Akuli ok?
adder OK.

Attaching the black probe

Akuli so here's how the convenience thing is gonna work
Akuli you have the green alligator cable attached to the LED's minus leg
Akuli hmm no
Akuli it's attached to the resistor, right?
adder Yep.
Akuli stick your multimeter's black probe in between there too
Akuli so that the green alligator cllip holds the black probe to the resistor while also providing minus power for the whole thing
Akuli this black probe will stay there during all your measurements, and you will be measuring with just one probe instead of two
Akuli ok?
adder OK.
Akuli got it stuck in?
adder Yep.

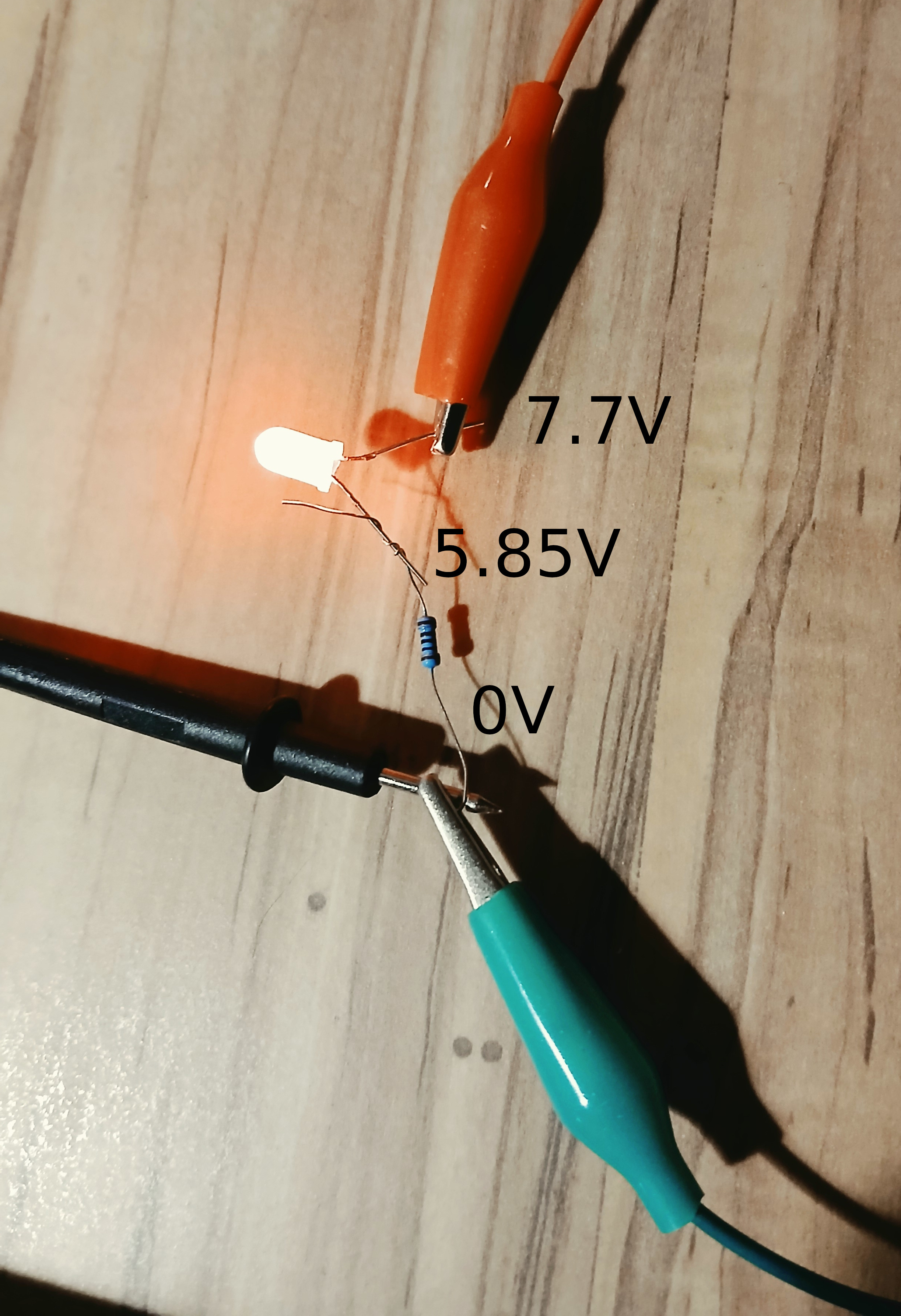

Akuli now measuring the resistor's voltage is easy
Akuli you just touch the red probe to the other resistor leg, which is tied onto led
Akuli ok?
Akuli should get the same 5.85V
adder OK.
Akuli now, how to measure the voltage of the LED?
Akuli you might think that you need to take out the black cable, but you don't
adder 7.7 - Resistor Voltage
Akuli yep :)
Akuli you measure both ends and you subtract
adder Both ends of what?
Akuli both ends of the LED
adder OK.
Akuli LED voltage = 7.7V - 5.85V
Akuli throw that to a calculator of your choice
adder 1.85
Akuli great :)

Why we subtract

Akuli so, to be clear about why this works:
Akuli let's say we want V(A -> B)
Akuli ok?
adder OK.
Akuli we can do: V(A -> B) = V(A -> TheGreenClip) + V(TheGreenClip -> B)
Akuli ok?
adder OK.
Akuli V(A -> TheGreenClip) is easy, touch A with red probe
Akuli ok?
adder OK.
Akuli there's no way to measure V(TheGreenClip -> B)
Akuli but we can measure V(B -> TheGreenClip)
Akuli and then calculate: V(TheGreenClip -> B) = -V(B -> TheGreenClip)
Akuli ok?
adder Needs another pass I think.
Akuli sure
Akuli so if you touch X with multimeter red probe, you measure V(X -> TheGreenClip)
adder Sorry, am a bit disoriented and in a pretty awkward pose.
Akuli :D
Akuli ok?
adder Let's forget TheGreenClip.
adder Or does it matter/
Akuli it does matter, but let's shorten it to G
Akuli so V(anything -> G) is easy to measure
Akuli just touch the thing
Akuli ok?
adder OK.
Akuli we needed V(G -> anything)
Akuli the other way, so just measure and put minus sign in front
Akuli ok?
adder OK.
Akuli V(A -> B) = V(A -> G) + V(G -> B)
Akuli ok?
adder OK.
Akuli V(A -> B) = V(A -> G) - V(B -> G)
Akuli ok?
adder OK.
Akuli that's all i tried to say :)
Akuli so that is why we subtract
adder OK.

Ground and "voltage of a point"

Akuli so, this is what ground is
Akuli if you agree that all voltages are measured from whatever thing to the same point, it's easier to work on things
Akuli ok?
adder So ground is just a common reference point to measure voltages?
Akuli yes!
adder Not necessarily 0V.
Akuli ground itself is 0V
Akuli if you touch the red probe to the ground, you're just touching the probes to each other so the meter says 0V
adder I see.
Akuli ok?
adder OK.
Akuli so, now you notice that every point has a voltage
Akuli technically, it's the voltage from that point to ground
Akuli but practically, you just think of it as the voltage of that point
adder OK.
Akuli and any voltage between two points is just subtracting
Is this same as subtracting two points to get a vector?
adder One sec.
adder Yknow how in vectors to get a vec out of two points, we subtract B-A?
Akuli yes :)
adder Is this the same?
Akuli this is the same
adder OK.
Akuli also the same as how in C, you subtract two pointers to get the offset from one pointer to another
Akuli (or how in any language you can subtract indexes)
adder Right.
Note from Akuli:

Here are the voltages of all points.

Lesson Image

Choosing the ground point

Akuli any point in a circuit could be thought of as ground, and everything rewritten that way
Akuli usually (not always), ground is chosen to be the most negative point in the circuit
adder OK.
Akuli in this case, your green alligator cable, since it plugs in to power supply negative
Akuli if you instead chose ground to be power supply positive, then all the voltages you measure would be negative
adder Right. :)
Akuli LED would sit at about -2 volts, the other alligator clip would sit at -7.7 volts
Akuli it's just how that point sees the circuit :)

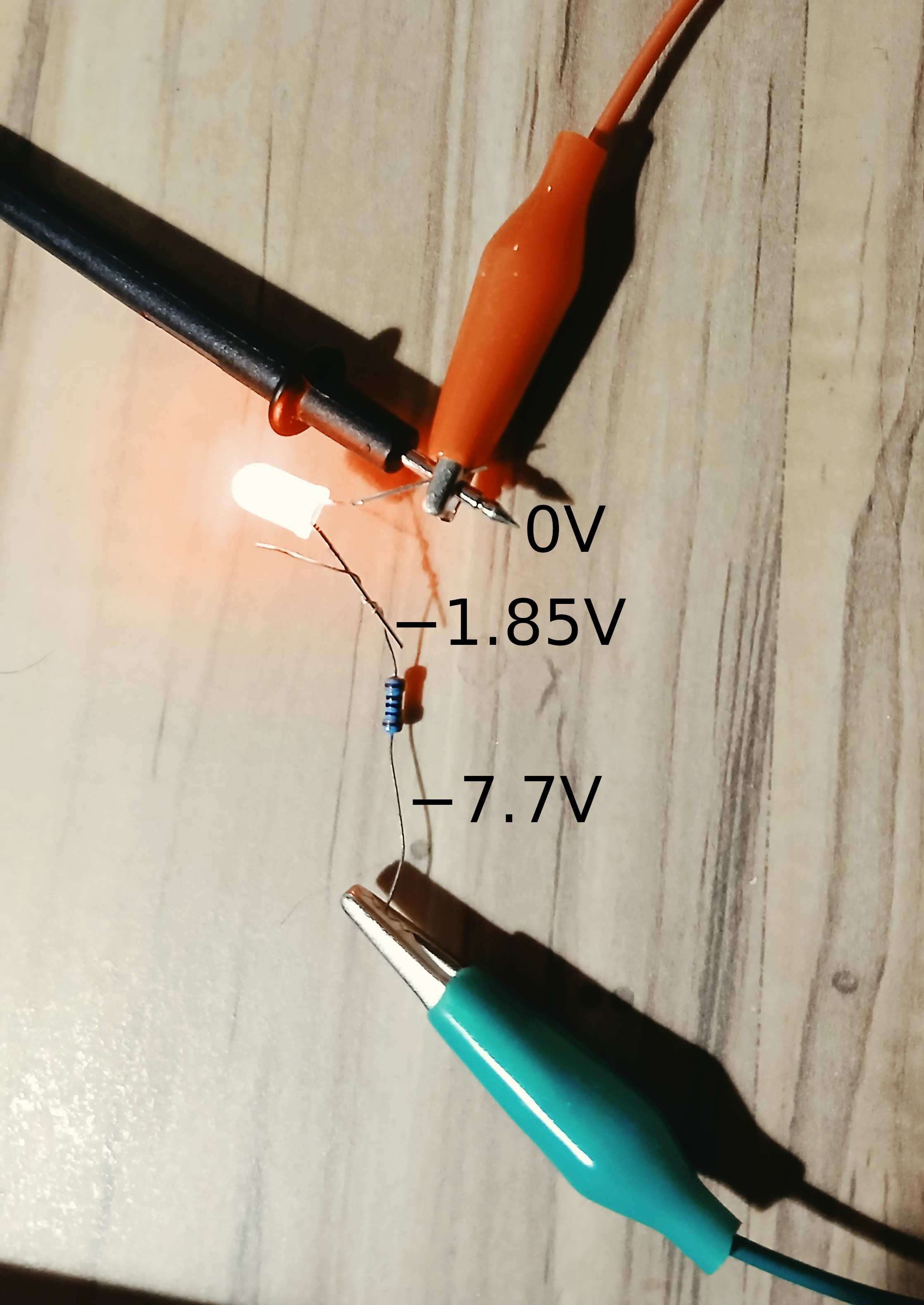

Note from Akuli:

Here are the voltages of all points, with ground chosen to be the power supply positive.

Lesson Image

The other meaning of ground

Akuli hmm, there's actually another meaning of "ground" i should distinguish to avoid confusion
Akuli so far we've talked about the ground of your own electronics thing you're making
Akuli ok?
adder OK.
Akuli but the world's electricity distribution network also has a ground
Akuli it is connected to literal earth's ground, hence the name
adder I see.
adder Out of safety reasons or?
Akuli yes, exactly
Akuli ground is often connected to the box of a metal device
Akuli (for various reasons)
Akuli and you don't want your devices to be dangerous to touch if you're standing on literal ground
adder OK.

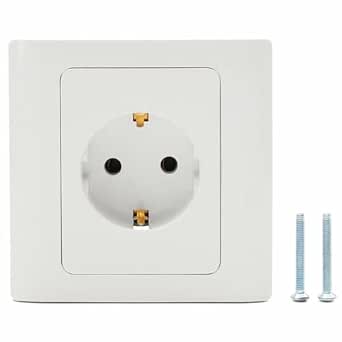

Lesson Image
Akuli sent a picture. The picture is from here.
Akuli sockets in your country look like that if i remember correctly?
Akuli (that's what they look like here)
adder Yep.
Akuli those metal clips are ground clips
Akuli there's two in case one is broken
adder I see.
Are ground of stuff interconnected all the way to literal ground?
adder Are ground of stuff interconnected all the way to literal ground?
Akuli yes
adder I see.
Akuli typically at each house, there is a wire buried into literal ground, and connected to the electricity system's ground
adder I see.
Ground fault protection
Akuli i'll tell you one more thing about this system's way to use ground
Akuli it is a safety feature
Akuli the metal cases of devices are connected to ground
Akuli so, if any wire inside the device gets loose and touches the case, the device likely starts consuming electricity through the ground wires
Akuli this should never happen normally
Akuli ok?
adder OK.
Akuli there's things literally called ground fault protection, that check for this exact thing
Akuli and just turn off the power when that happens
adder I see.
Akuli so instead of getting a dangerous amount of electricity to the case, a protection thing turns it off
Akuli especially important in bathrooms and toilets and such where things can get wet
adder I see.
Akuli so in electronics, we don't usually care about any of that
adder OK, sounded like a lot to learn. :)
adder It's so strange as a notion.
Akuli in electronics, ground is just a convenient way to define "voltage of a point", a very useful concept
Akuli and we just talk about "voltage of this point" and implicitly reference a ground point
adder OK.
Akuli your device's ground may not even be connected to the electricity distribution's ground!
Akuli for example, your phone's ground isn't connected that way, even when the charger is plugged in
Akuli the chargers typically don't use the ground clips
Akuli ok?
adder OK, but I will likely forget this. :)
Akuli :)
Akuli yeah
adder Let's call it a day?
Akuli just wanted to bring up that there's two notions of ground, and the one we use is just a convenient way to measure voltages
Akuli yes, let's call it a day :)
adder Cool, thanks.
